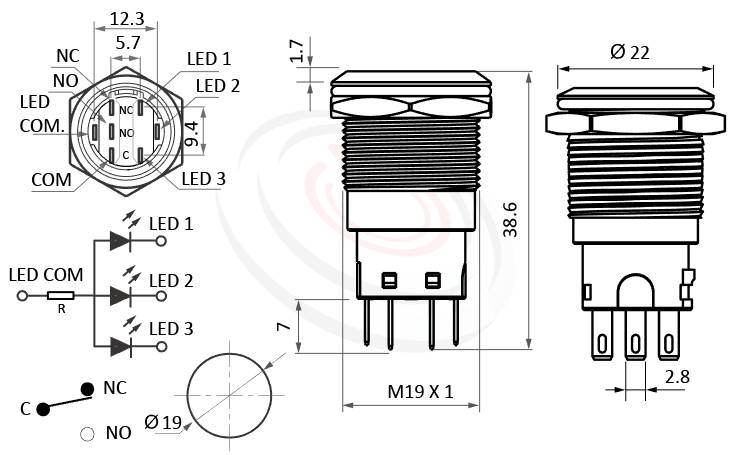

安裝孔尺寸Panel Cut：Φ19 mm
頭部形狀Head Shape：平面Flat Round
開關組合Contact Type：1 NO 1NC 1COM / SPDT
開關功能Operation Type：自鎖式Self-Lock
接線類型Terminal Type：焊線端子式Wiring Terminal
防水等級IP Degree：IP65 / IP67
帶燈型式Lamp Type：環型燈Ring Illuminated
LED燈壓Lamp Voltage：3 / 6 / 12 / 24 / 110 / 220 V
燈色LED Color：紅/綠/藍三色 (共陽極 共陰極可選)
R/G/BL Tri-color LED
(Common anode configuration and Common Cathode configuration optional)
