輕觸開關 HTS-06RV Series

HTS-06RV Series-輕觸開關-6x6mm,DIP式,側按 固定支架,Horizontal水平側邊輕觸開關Tact Switch

6x6mm 90度側按 DIP

尺寸規格Dimension:6x6 mm

產品高度Stem length:L=3.15* ~ 14.15

額定電流Rating:50mA.12V DC

產品力度Operating force:100gf、160gf、260gf

產品壽命Operating Life:100,000次

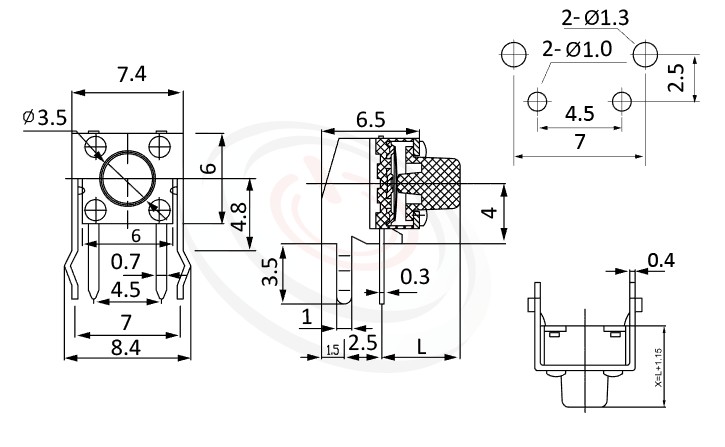

HTS-06RV Series ,6x6mm 90度 側按 輕觸開關Tact Switch尺寸圖 ,PCB版上中心點高度4mm,DIP
