輕觸開關 HTS-36PA Series

HTS-36PA Series-輕觸開關-6x3.5mm,DIP,長方形,直立式按壓輕觸開關Tact Switch

6x3.5mm 小型輕觸 DIP

尺寸規格Dimension:6x3.5 mm

產品高度Stem length:H=4.3* ~ 8.0

額定電流Rating:50mA.12V DC

產品力度Operating force:160gf、260gf

產品壽命Operating Life:100,000次

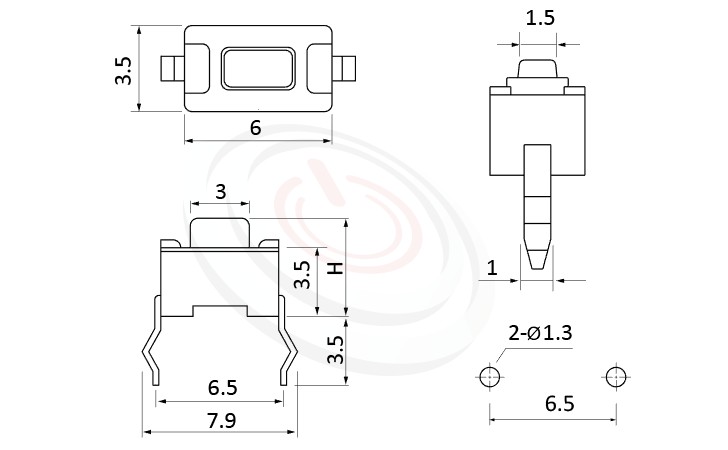

HTS-36PA Series ,6x3.5mm,按鍵輕觸開關Tact Switch尺寸圖 ,DIP式
