輕觸開關 HTS-37MS Series

HTS-37MS Series-輕觸開關-3.7x3.7mm,SMD,超薄型,垂直按押輕觸開關Tact Switch

3.7x3.7mm 超薄型 SMD

尺寸規格Dimension:3.7×3.7 mm

產品高度Stem length:H=0.35

額定電流Rating:50mA.12V DC

產品力度Operating force:1=100gf、2=160gf、3=260gf

產品壽命Operating Life:100,000次

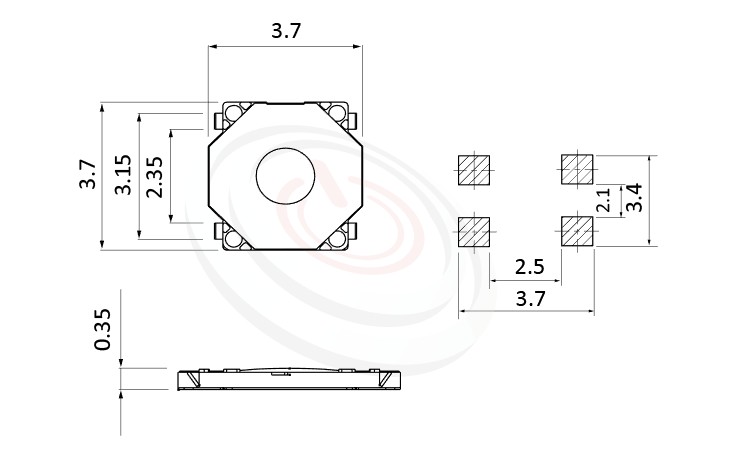

HTS-37MS Series ,3.7x3.7輕觸開關Tact Switch 尺寸圖 ,SMD
