輕觸開關 HTS-47SA Series

HTS-47SA Series-輕觸開關-4.5x4.7mm,SMD型,側按SMD固定柱,側壓輕觸開關Tact Switch

4.5x4.7mm 90度側按 SMD

尺寸規格Dimension:4.5x4.7 mm

產品高度Stem length:L=4.5

額定電流Rating:50mA.12V DC

產品力度Operating force:100gf、160gf、260gf

產品壽命Operating Life:100,000次

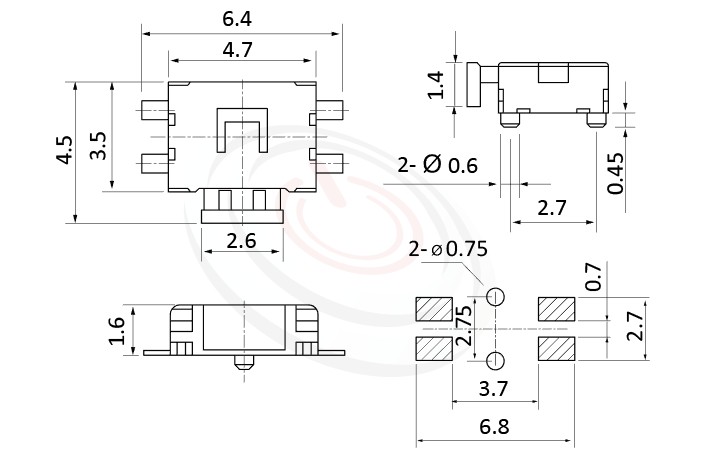

HTS-47SA Series ,4.5x4.7觸動開關Tact Switch尺寸圖 ,SMD表面黏著
